  • Mastic asphalt technology

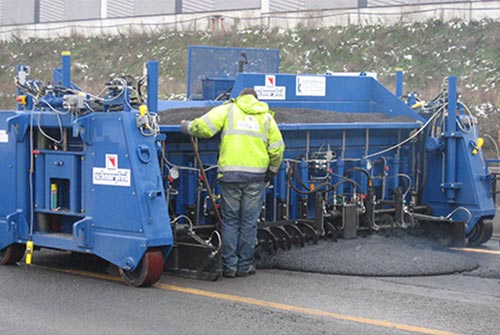

Mastic asphalt finisher KBR 75 SL

For automatically installation of mastic asphalt for road building with
automatic grit

  • The minimum installation width is 2500 mm, in steps of 250 mm; the installation width can be increased to a max. of 8500 mm.
  • Hydrostatic chain-driven all-wheel drive, speed of
    0-3 m / min, infinitely adjustable. Max. moving speed 6 m/min
    Can be equipped with vulcollan wrappings, rail wheels or crawler chassis.
    The height is adjusted with stable elevating spindles and is hydraulically driven.
    Standard hydraulically adjustable side bulkheads
  • Finisher tools in milled design with pressing and smoothing surface are propane-heated and each screed part can be equipped with a thermometer for temperature control
    .
  • Grit spreading computer-controlled
  • There is an option to equip the finisher with various special features:
    Blade distributor
    Distribution screw
    Road chassis from 20 to 80 km/h
    Replaceable end fittings
    Hydraulic pillar chassis
    assembly jig

Technical details:

Description KBR 75 SL
Installation width 2500 mm – 8500 mm
Height adjustment finisher section from +100 mm to -250 mm
Heating for finisher section Propane gas bar burner made of stainless steel
Drive motor HATZ diesel engine type 2L41C, 24 kW sound-insulated
Traction drive Hydrostatic all-wheel drive, reversible with vulcollan wrappings
Operating speed 0.25 – 3.00 m/min
Dimensions of basic unit:
Approx. length 3250 mm
Approx. width 2450 mm
Approx. height 1900 mm
Approx. installation width 2500 mm
Approx. weight 5800 kg

Subject to technical changes.
